SIDEWINDER RANGE

SIDEWINDER 8-32×56 20X ½ MIL DOT

Chassis: 30mm Monotube

Optical System: 8-32x

Objective 56mm

Reticle: 20x ½ Mil Dot

Illumination: Red/Green 5 Levels

Parallax: Side Focus -9m. to Infinite

FOV @100m: 3.5m - 1.1m

Eye Relief: 89mm

Length: 432mm

Weight: 870g.

Rated All Calipers.

Model: 17 230

Availability: NO

SIDEWINDER 6-24×56 20X ½ MIL DOT

Chassis: 30mm Monotube

Optical System: 6-24x

Objective: 56mm

Reticle: 20x ½ Mil Dot

Illumination: Red/Green 5 Levels

Parallax: Side Focus -9m. to Infinite

FOV @100m: 4.9m - 1.5m

Eye Relief: 89mm

Length: 404mm

Weight: 844g.

Rated All Calipers.

Model: 17 220

Availability: YES

SIDEWINDER 10x42 10X ½ MIL DOT

Chassis: 30mm Monotube

Optical System: 10x

Objective: 42mm

Reticle: 10x ½ Mil Dot

Illumination: Red/Green 5 Levels

Parallax: Side Focus -9m. to Infinite

FOV @100m: 3.6m

Eye Relief: 102mm

Length: 369mm

Weight: 647g.

Rated All Calipers.

Model: 17 130

Availability: YES

SIDEWINDER 6.5-20x42 20X ½ MIL DOT

Chassis: 30mm Monotube

Optical System: 6.5-20x

Objective: 42mm

Reticle: 20x ½ Mil Dot

Illumination: Red/Green 5 Levels

Parallax: Side Focus -9m. to Infinite

FOV @100m: 5.6m - 1.8m

Eye Relief: 89mm

Length: 391mm

Weight: 738g.

Rated All Calipers.

Model: 17 110

Availability: NO

AIRMAX RANGE

AIRMAX 30 SF 6-24×50 AMX IR

Chassis: 30mm Monotube

Optical System: 6-24x

Lens Coating: 16 Layers

Objective: 50mm

Reticle: 20x ½ Mil Dot

Illumination: Red Stepless

Turrets: 1/4 MOA

Parallax: Side Focus -9m. to Infinite

FOV @100m: 5.8m - 1.5m

Eye Relief: 102mm

Length: 395mm

Weight: 757g.

Rated All Calipers.

Model: 13 320

Availability: YES

PANORAMA RANGE

PANORAMA 4-12×50 10× ½ MIL DOT

Chassis: 25mm Monotube

Optical System: 4-12x

Lens Coating: 16 Layers

Objective: 50mm

Reticle: 10× ½ Mil Dot

Illumination: Red/Blue 5 Levels

Turrets: 1/4 MOA

Parallax: Fixed 91m

FOV @100m: 10m - 3.7m

Eye Relief: 89mm

Length: 321mm

Weight: 547.

Rated All Calipers.

Model: 15 130

Availability: YES

VANTAGE RANGE

VANTAGE 3-9×50 MIL DOT

Chassis: 25mm Monotube

Optical System: 3-9x

Lens Coating: 11 Layers

Objective: 40mm

Turrets: 1/4 MOA

Parallax: Fixed 91m

FOV @100m: 13m - 4.2m

Eye Relief: 89mm

Length: 315mm

Weight: 402G.

Rated All Calipers.

Model: 14 131

Availability: YES

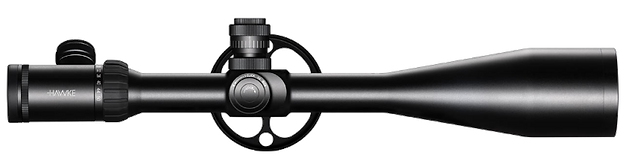

SIDEWINDER ED 10-50×60 TMX

Chassis: 30mm Monotube

Optical System: 10-50x Extra-low Dispersion Glass

Objective 60mm

Reticle: TMX

Illumination: Red Stepless

Parallax: Side Focus -9m. to Infinite

FOV @100m: 3.9m - 0.8m

Eye Relief: 895mm

Length: 458mm

Weight: 980g.

Rated All Calipers.

Model: 17 370

Made to Order

INTERCHANGEABLE, LOCKING AND RESETTABLE TURRETS

The New Sidewinder ED with its new patented interchangeable turrets gives you the unique ability to choose your shooting preference

The Scope includes 3 sets of Turrets:

1/4 MOA - 1/8 MOA - 1/10MRAD

LASER RANGE FINDER

Hawke LRF Pro 600

Price: €160,00

Hawke LRF Pro 900

Price: €180,00

Modes Available:



  • Standard Mode

Measures the straight line distance to the target you are aiming at.



  • Beeline Mode

Measures the horizontal distance to a target.



  • Height Mode

Measures how high an object or target is in relation to the range finder.



  • Angle Mode



Measures the angle of projection. (to the nearest half degree)



  • Height Difference Mode



Measures the vertical distance between two points

Key Features:



  • 6X Magnification

  • Water resistant

  • Inner-vision-field LCD display

  • Range: 5m - 900m

  • Easy 2 Button Operation

  • Uses a single CR2 3V Battery

  • Neoprene Carry Case (with Belt Loop)

  • Lanyard with battery compartment 'key'

RETICLE INFORMATIONS

Sidewinder ED TMX Reticle


AMX Reticle

The AMX IR reticle is etched on the glass and is based on the 10x Mil Dot Spacing.



The Reticle offers multiple aim points and can be used on air guns with loopy trajectories.

Half mil dots brackets are provided for accurate long shots and the horizontal bars are set at 0.5, 1.5, 2.5, 3.5 and 4.5 mil Spacing.

20X ½ MIL DOT RETICLE

The 20X 1/2 Mil Dot etched Reticle  provides the shooter with true 20x magnification mil spacing. The Hollow bars are 0.2 mil spacing and mil spacing

The mil dots hollow bars can be used for accurate range finding.
